Victory 1:100 - set of blocks and ropes for gun hoists
Code: SET-VIC004Related products
Product detailed description
Link to the kit HERE
Link to complete accessories for this model HERE
Instructions and workflow can be found HERE
The set is designed for 22 guns visible on the upper decks of the ship. Each gun has three hoists for handling. Two on each side for pushing the gun into firing position. One at the rear for retracting the cannon back to reload.
The rear hoist was only present when the ship was in combat mode. The hoist was to hooking in the eyelets on the gun and the sides of the ship, or in the eyelets in the deck of ship behind the gun.

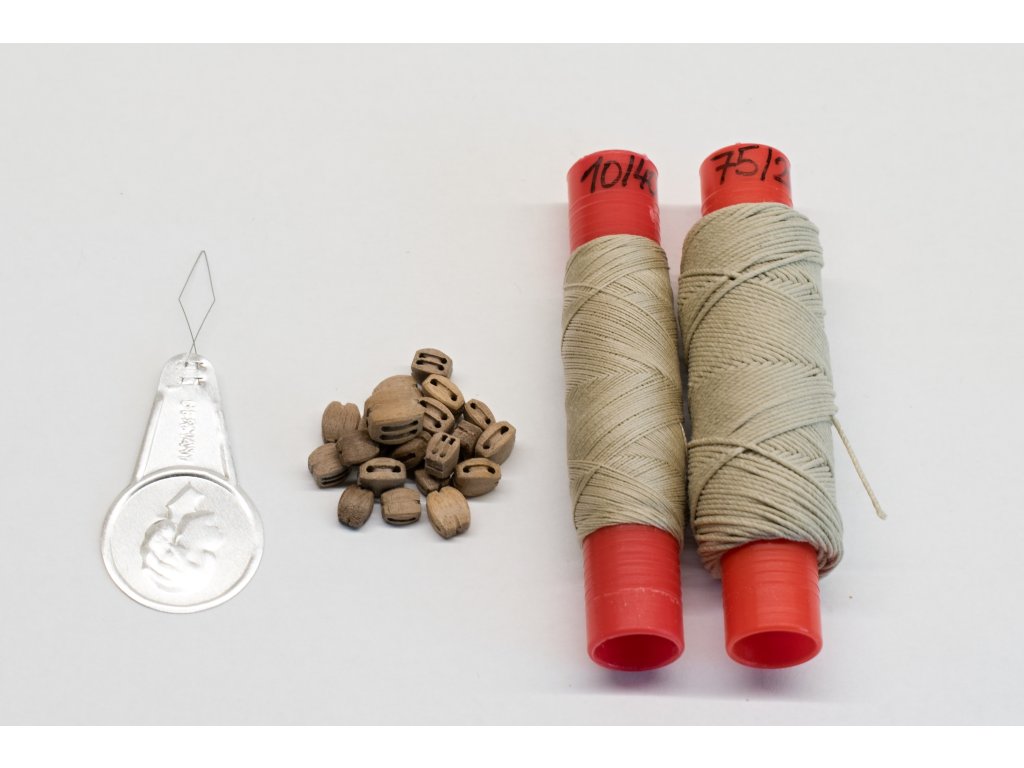

Set contain:
Each hoist is made by 1x SB1/2,5 + 2x DB/2,5 walnut blocks
WaB-SB1/2,5 - 70 pcs
WaB-DB2/2,5 - 70 pcs
and ropes for guns hoist R-N25/20 - 1pcs and Breeching rope R-N75/20 - 1pcs
TR - 2x
Additional parameters
| Category: | Victory - 1:100 Heller |
|---|---|
| Weight: | 0.01 kg |
| 1: | R-N25/20 Natural rope th. 0,25mm/l. 20m (1x) |
| 2: | R-N75/20 Natural rope th. 0,75mm/l. 20m (1x) |
| 3: | TR Rope threader (2x) |
| 4: | WaB-SB1/2,5 CNC single block 1/2,5mm - Walnut (70x) |
| 5: | WaB-DB2/2,5 CNC double block 2/2,5mm - Walnut (70x) |
