Victory 1:48-50 - set of ropes set of ropes for model

Product detailed description

Instructions

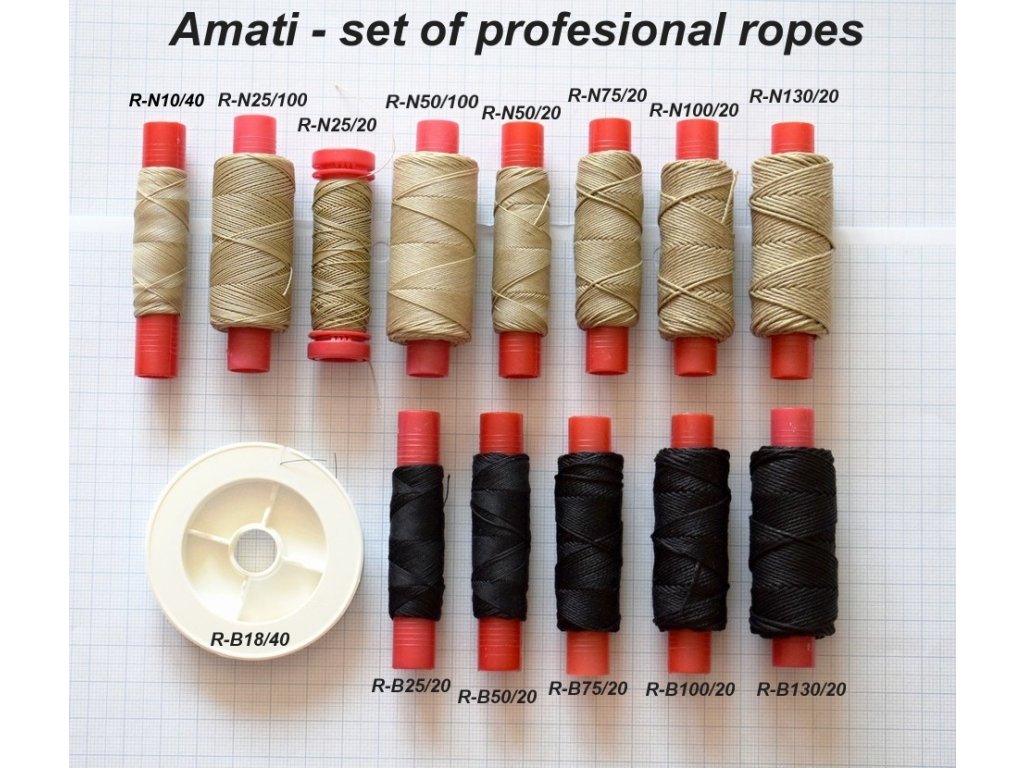

Set contains:
Rope color - Diameter in tenths of a millimeter / rope length
Natural color: N25/100; N50/100; N75/20; N100/20; N130/20; 2x N160/10; 2x N200/5; N250/2
Black color: 3x B25/20; 2x B50/20, 2x B75/20; B100/20; B130/20
Number of pcs 19

In the ship plans section of this websit, you can find a rigging table based on information from the book The 100 gunship Victory. In this book the original tables used by the English Navy for the rigging of Victory ships are listed at the end. The table contains the rope numbers listed in this table + the rope numbers listed in the plan where I have plotted the blocks. The name of the rope, the actual diameter of the rope, and the conversion to that scale are given for the respective ropes. And the size of the blocks for that scale, and the type of blocks.

However, if you find it difficult to search this table, I am sending a simplified listing of rope usage by Amati:
Stay ropes:
Main and Fore Lower stay – 3,0mm
Main and Fore Lower prevenstay – 2,20mm
Main and Fore Topmast stay - 1,40mm
Main and Fore Topmast prevenstay - 1,10mm
Main and Fore Topmast Backstay – 1,20mm
Main and Fore Topgallant mast stay - 0,76mm
Main and Fore Topgallant mast Backstay– 0,70mm
Main and Fore Royal mast Backstay– 0,50mm

Mizzen Lower stay – 1,40mm
Mizzen Lower prevenstay – 1,00mm
Mizzen Topmast stay - 0,85mm
Mizzen Topmast Backstay – 0,75mm
Mizzen Topgallant mast stay - 0,50mm
Mizzen Topgallant mast Backstay– 0,35mm

Shrouds
Main and Fore Lower shrouds – 1,85mm
Mizzen Lower shrouds – 1,20mm
Main and Fore Top shrouds – 1,18mm
Mizzen Top shrouds – 0,75mm
Main and Fore Topgallant shrouds – 0,70mm
Mizzen Topgallant shrouds – 0,40mm

Ropes for Running rigging:
For simplicity - a certain blocks size corresponds to a given rope thickness.
